Place of Origin: | CHINA |
Brand Name: | KAIAO |
Certification: | CE/ISO9001 |
Model Number: | KDE6500X/KDE6500E/KDE6500T |
Minimum Order Quantity: | 10 SETS |
---|---|
Price: | 300-800 USD |
Packaging Details: | CARTONS OR PLYWOOD BOX |
Delivery Time: | 5-10 WORKING DAYS |
Payment Terms: | T/T, L/C |
Supply Ability: | 1000 SETS/MONTH |
Speed: | 3000/3600rpm | Rated Voltage: | 220,240V |
---|---|---|---|
Frequency: | 50/60HZ | Rated Power: | 5.0 |
Output Type: | AC Single Phase,AC Single/Three Phase | Warranty: | One Year Or 1000running Hours |
Color: | According To Customers' Requirement | Alternator: | Copper Wires |

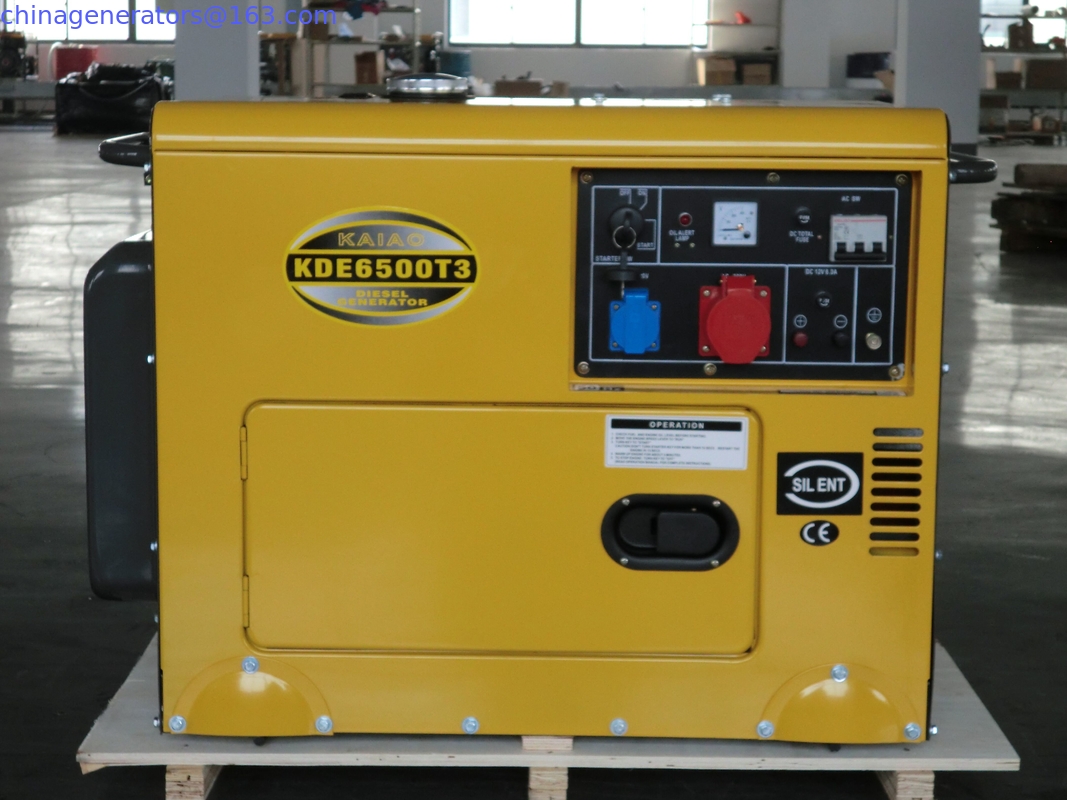

Type: | Soundproof/open/container | Product Name: | Hot Sale Small Portable 7.5kva Silent Diesel Generator |
Options: | Silent/ATS/controller | Engine Type: | Twin-Cylinder Diesel Generator,1-Cylinder |
GENERATOR
|
Model
|
KDE6500T
|
|
Frequency:Hz
|
50
|
60
|
|
Rated output:Kva
|
4.5
|
5
|
|
Max.output:Kva
|
5
|
5.5
|
|
Rated.AC voltage:V
|
115/230
|
120/240
|
|
Current:A
|
39.1/19.6
|
41.7/20.8
|
|
Phase
|
sigle-phase
|
||
DC output:
|
12V
|
||
Power factor:COS
|
COS=1
|
||
Alternator type
|
self-excited2-polesingle phase alternator
|
||
Starting system
|
Electric Starter
|
||
Operatong noise lecel(at 7m):dB(A)
|
72
|
||
Fuel tank capacity:L
|
15
|
||
ENGINE
|
Model
|
KA186FA
|
|
Type
|
Single-cylinder,vertical,4-stroke air-cooled diesel engine
|
||
BoreStroke(mm)
|
86×72
|
||
Fuel
|
Summer:0# Winter: -10#
|
||
Lubricatiom oil Model:
|
SAE10W-30(above CD grade)
|
||
Lubricatiom oil volume:L
|
1.65
|
||
Fuel comsumption Rate(g.kw/h)
|
275.1
|
281.5
|
|
Displacement:L
|
0.406
|
||
Power/speed:KW, r/min
|
5.7/3000
|
6.3/3600
|
|
Compression Ratio
|
19
|
||
Combustion system
|
Direct lnjection
|
||
STANDARD FEATURES
|
Voltmeter
|
Yes
|
|
AC Output Socket
|
2
|
||
AC circuit breaker
|
Yes
|
||
Oil warning light
|
Yes
|
||
Oil alert
|
Yes
|
||
OPTIONAL FEATURES
|
