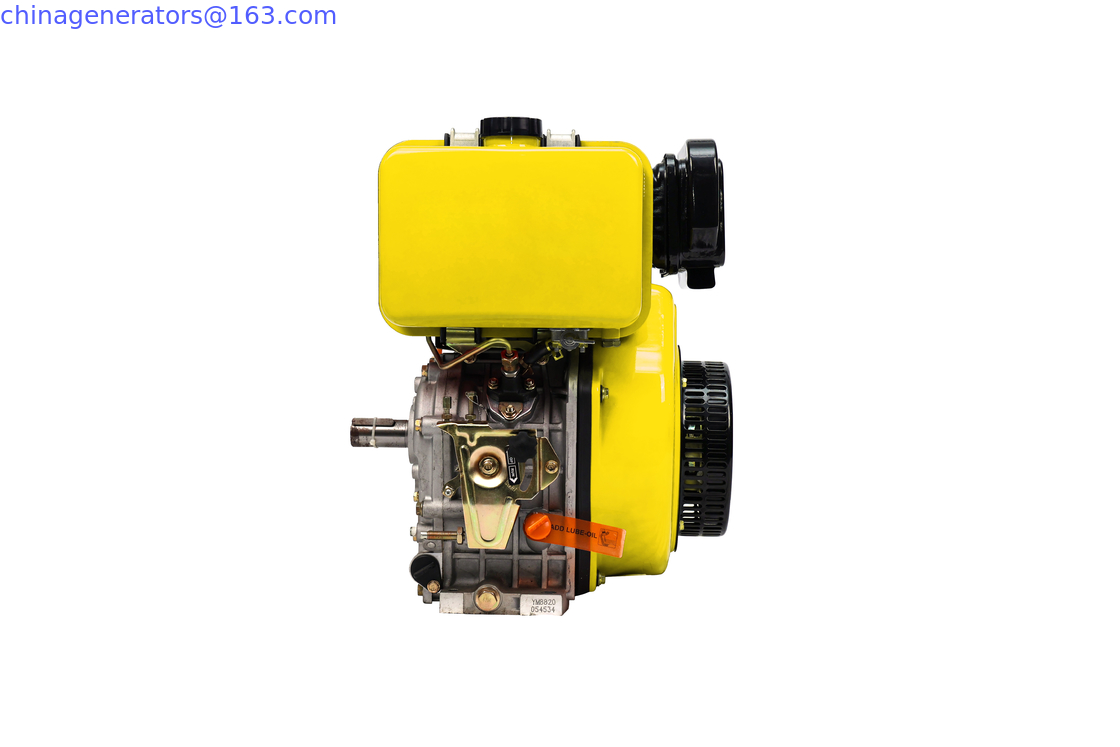

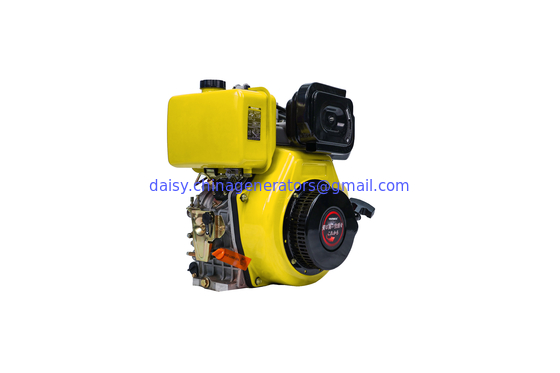

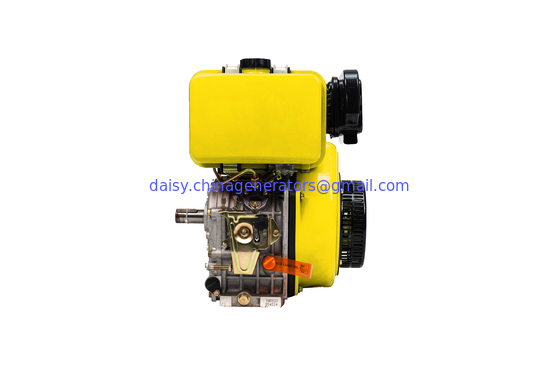

Single Cylinder Air Cooled Diesel Engine KM186F 5.5KW/ 3000rpm for Boats Power Supply

Single Cylinder Air Cooled Diesel Engine KM186F 5.5KW/ 3000rpm for Boats Power Supply

    • Single Cylinder Air Cooled Diesel Engine KM186F 5.5KW/ 3000rpm for Boats Power Supply
    • Single Cylinder Air Cooled Diesel Engine KM186F 5.5KW/ 3000rpm for Boats Power Supply
  • Single Cylinder Air Cooled Diesel Engine KM186F 5.5KW/ 3000rpm for Boats Power Supply

    Product Details:

    Place of Origin: CHINA
    Brand Name: Keypor
    Certification: ISO9001, CE,
    Model Number: KM186F

    Payment & Shipping Terms:

    Minimum Order Quantity: 10 SETS
    Price: USD 150-180 / SET
    Packaging Details: Carton packing
    Delivery Time: 7-10 days
    Payment Terms: L/C, T/T
    Supply Ability: 2000 sets/ month
    Contact Now
    Detailed Product Description
    Cylinder: Single Cylinder Or Double Cylinder Engine: Air Cooled Engine
    Engine Model: 173F/178F/186F/188F/190F192F/195F/1100F Speed: 3000rpm/ 3600rpm

    Single Cylinder Air Cooled Diesel Engine KM186F 5.5KW/ 3000rpm for Boats Power Supply



    Model KM170F/FE KM178F/FE KM186FA/FAE  KM188FA/FAE  KM190F/FE  KM192F/FE  KM195F/FE   KM1100FE
    Engine Type                                             1-Cylinder,4-Stroke,Air-cooled ,Veritical
    Combustion System                                                            Direct injection
    Broke * Stroke[mm]      70 * 55     78 * 62       86 * 72      88 * 75     90 * 75     92 * 75     95 * 75     100 * 85
    Displacement      0.211     0.296       0.418        0.456      0.477      0.499      0.532      0.667
    Compression Ratio      20:01     20:01       19.5:1       19.5:1     19.5:1     19.5:1     19.5:1     19.5:1
    Rated Speed[rpm]   3000 3600   3000 3600    3000 3600    3000 3600   3000 3600   3000 3600   3000 3600   3000 3600
    Rated Power[Kw]   2.5   2.8   3.7    4.0       5.8   6.6      6.6    6.9    6.7    7.3    7.6    8.6     8.1   8.7   10.5 10.5
    Starting System F: Recoil starter                E: Electric starter Electric starter
    Fuel Tank Capacity [L]      2.5        3.5         5.5         5.5        5.5        5.5       5.5         5.5
    Lube[L]     0.75       1.1        1.65        1.65       1.65       1.65      1.65       1.65

    Fuel Consumpition

    [g/kwh ]

                                                         275                280    280 300   280 300
    Fuel                                             0#(summer),  -10#(winter)     Diesel oil
    Lube                                                 SAE10W30 ( above CD grade )
    Overall Diemension[mm] (L*W*H) 335*380*415 383*421*450 417*441*494 417*441*494 417*441*494 417*441*494 417*441*494 417*441*494
    N.W[Kg]  F:27  E:31   F: 33  E: 38    F: 48  E: 53    F:48  E:53   F:49  E:54   F:50  E:55   F:50  E:55        62
    Rotation Direction(View from Flywheel)                                                                            Clockwise



    Single Cylinder Air Cooled Diesel Engine KM186F 5.5KW/ 3000rpm for Boats Power Supply
