Specifications for 300KW Stamford Type Brushless AC Alternator Generator
1. Directly Manufacturer
2. 100% Copper wire AC Alternator 375KVA/300KW
3. OEM Service
4. CE/ISO Approved
5. 7-10 days lead time
FARADAY 100% Copper Wire Three Phase AC Alternator 200KW-320KW
Alternator Features:
- Brushless, Synchronous AC Alternator, Easy operation and simple maintenance
- IP23, Insulation Class H Alternator
- Usage: As a electric power source matching diesel engines for lighting purpose in Town, Countryside, Work sites, Mountain and Pasture lands
- Drip-proof type
- 3 phase 4 wire type, Star connection
- 50HZ, 380V, 1500RPM as standard, also 60HZ can be made as customers’ requirement
- Certificate: CE/ISO9001
Operating conditions
Under the following environment, The generator could be continuous and rated running:
Above sea level: Not exceed 1000m
Cooling air temperature: 258~313K(-15 ℃~ 40 ℃)
Relative air damping: not exceed 90%
Alternator Specification:
3-PH, 50HZ@1500RPM, 400/230V(Also can be made according to customers’ special requirements)
|
Alternator Model
|
FD4L
|
|
Power
|
375kva / 300kw
|
|
Exciter type
|
Brushless, Self excitation system
|
|
Power factor
|
0.8
|
|
Voltage adjust range
|
≥3%
|
|
Voltage regulation NL-FL
|
≤±0.3%
|
|
Insulation Grade
|
H
|
|
Protection Grade
|
IP23
|
FARADAY FD4 Series Alternator data for your reference:
|
Model
|
Output
|
Voltage (V)
|
Current (A)
|
Power Factor
|
Speed (rpm)
|
Freq. (Hz)
|
Pole No.
|
|
kva
|
kw
|
|
FD4S
|
250
|
200
|
380-415V
|
380
|
0.8
|
1500/1800
|
50/60
|
4
|
|
FD4MS
|
294
|
235
|
447
|
|
FD4M
|
313
|
250
|
476
|
|
FD4MP
|
325
|
260
|
494
|
|
FD4LS
|
350
|
280
|
532
|
|
FD4L
|
375
|
300
|
570
|
|
FD4LP
|
400
|
320
|
608
|

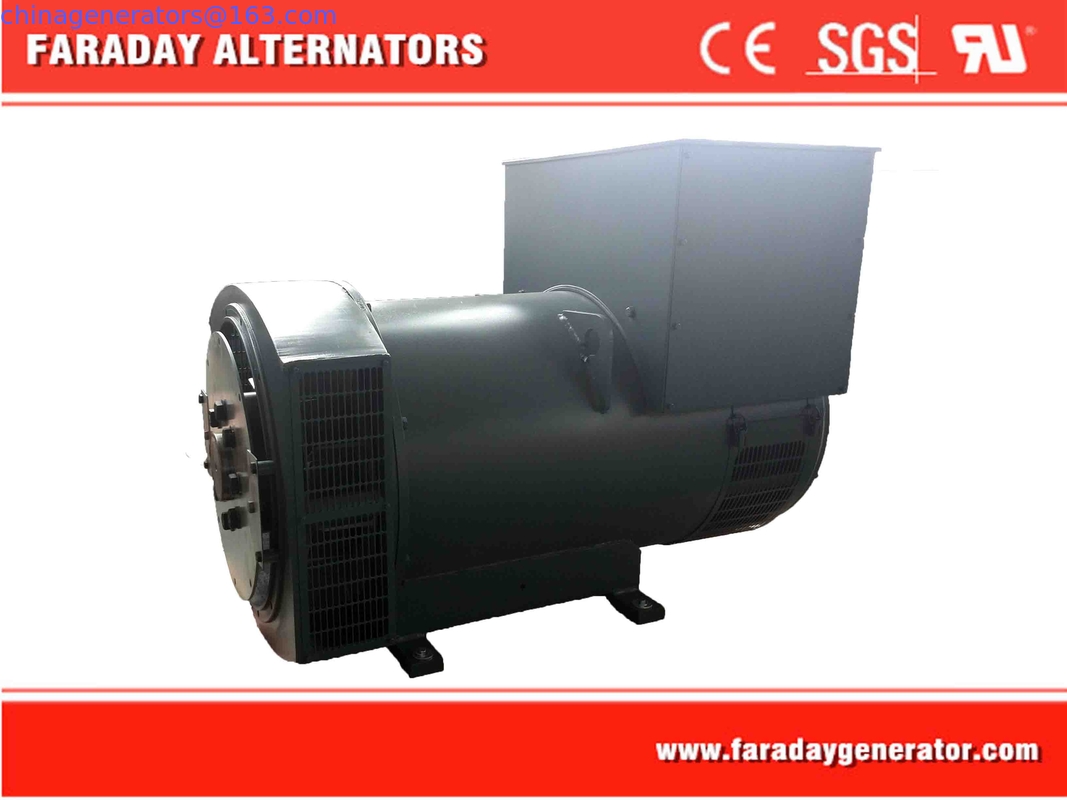

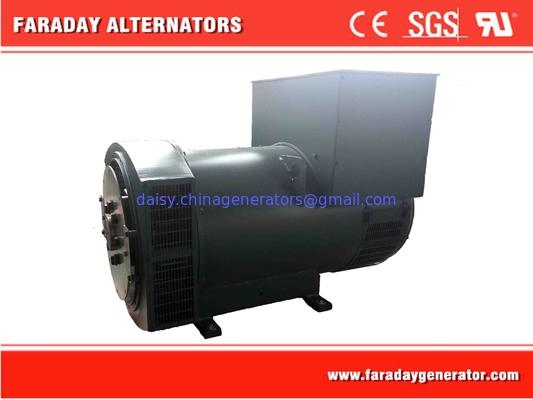

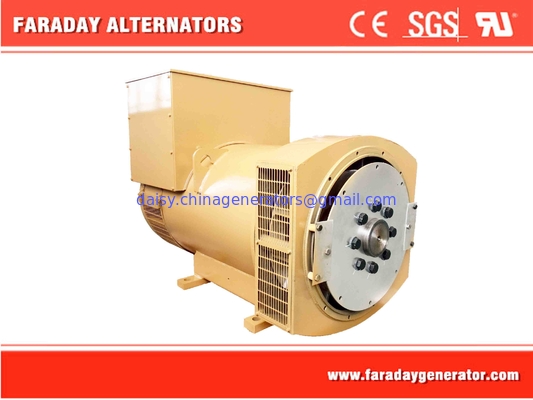

Product Show

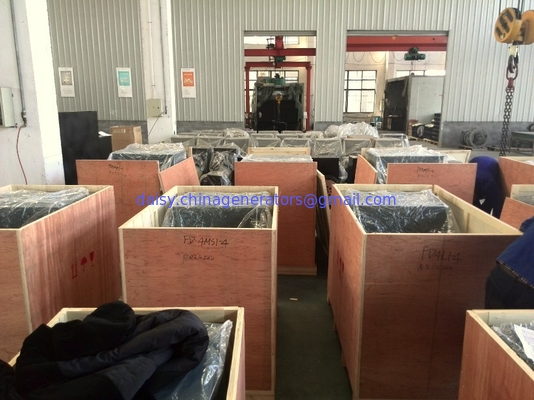

Package Details
Warranty Period
- Within 24 months from alternator's delivery or 18 months after the date first used, whichever comes first.
- During the guarantee period, we will supply freely service of the easy damaged parts for the possible problems except for the incorrect operation.
- After expiration, you should pay for the spare parts cost for alternator maintenance.
Payment Terms
- 30% deposit(T/T),balance (70%) to be paid before shipment.
- 100% irrevocable L/C at sight.
Why Choose Us?

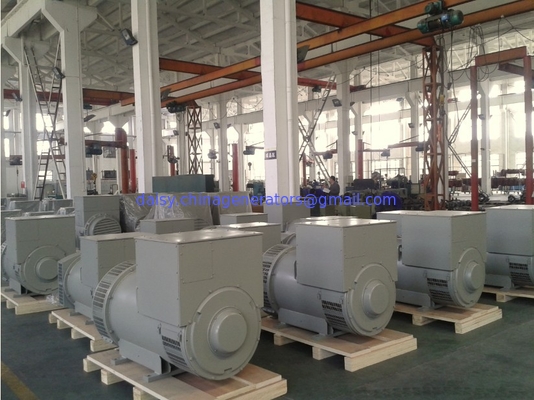

1) factory photos. Welcome to visit our factory!
- Over 12 years experience in generator field
- Directly manufacturer
2) Production Process
-
6 pole and 8 pole ac generator
New photos will come soon!
-
Marine generator
Main Partners
How to choose us?
1.Classification of generator:
(1) single phase or three phase;
(2) single bearing or double bearing;
(3) PMG is optional (except for FD1 series)
(4) Droop Kit and Anti-condensation heater are optional according to the operation environment.
(5) 2 pole/ 4 pole/ 6 pole/ 8 pole alternators are optional
2.How to choose AVR?
FD1/FD2 series SX460
FD3/FD4/FD5 series SX440
FD6 SX321 / PMG
FD7 SX341 / PMG
3.How to select generator?
-- working environment (less than 1000m above sea level & less than 40 ℃ ambient temperature)
-- different country with different frequency (60HZ for Korea, Taiwan, Philippines, Saudi Arabia, North America and South America countries)
-- For sea side operating environment, anti-condensation heater and droop CT
-- Insulation class H generator
-- 2/3 pitch
-- silicon steel, 100% copper wire, VPI system with Elantas Epoxy insulation painting
4. What is FD and FDH?
--FD means Faraday low voltage alternator
--FDH means Faraday high voltage alternator
--The model instruction is as follows:
