Specifications for Synchronous Altenrator Three Phase Output AC Generator for Marine Auxiliary Generator
1. Directly Manufacturer
2. 100% Copper wire AC Alternator 150KVA/120KW
3. OEM Service
4. CE/ISO Approved
5. 30-50 days lead time
FARADAY 100% Copper Wire Marine Type Three Phase AC Alternator 30KW-800KW
Alternator Features:
- Brushless, Synchronous AC Alternator, Easy operation and simple maintenance
- IP23, Insulation Class H Alternator
- Usage: As a electric power source matching diesel engines for lighting purpose in Town, Countryside, Work sites, Mountain and Pasture lands
- Drip-proof type
- 3 phase 4 wire type, Star connection
- 50HZ, 380V, 1500RPM as standard, also 60HZ can be made as customers’ requirement
- Certificate: CE/ISO9001
Operating conditions
Under the following environment, The generator could be continuous and rated running:
Above sea level: Not exceed 1000m
Cooling air temperature: 258~313K(-15 ℃~ 40 ℃)
Relative air damping: not exceed 90%
Alternator Specification:
3-PH, 50HZ@1000RPM, 400/230V(Also can be made according to customers’ special requirements)
|
Alternator Model
|
FDM3EM1-4
|
|
Power
|
150kva / 120kw
|
|
Exciter type
|
Brushless, Self excitation system
|
|
Power factor
|
0.8
|
|
Voltage adjust range
|
≥3%
|
|
Voltage regulation NL-FL
|
≤±0.3%
|
|
Insulation Grade
|
H
|
|
Protection Grade
|
IP23
|
FARADAY FD7 Series Alternator data for your reference:
|
Marine Type Three Phase AC Brushless Alternator |
|
Alternator Model |
Rated Power KVA |
Rated Voltage
(V) |
Rated Current (A) |
Rated Speed
(r/min) |
Power factor |
Efficiency
(%) |
Phase |
|
50Hz |
60Hz |
50Hz |
60Hz |
50Hz |
60Hz |
50Hz |
60Hz |
50Hz |
60Hz |
|
FDM2A-4 |
37.5 |
45 |
400 |
450 |
54 |
58 |
1500 |
1800 |
0.8 |
82.7 |
84.0 |
3 |
|
FDM2C-4 |
50 |
55 |
400 |
450 |
72 |
71 |
1500 |
1800 |
0.8 |
86.1 |
87.4 |
3 |
|
FDM2DS-4 |
62.5 |
70 |
400 |
450 |
90 |
90 |
1500 |
1800 |
0.8 |
89.0 |
89.9 |
3 |
|
FDM3A-4 |
80 |
90 |
400 |
450 |
115 |
115 |
1500 |
1800 |
0.8 |
88.5 |
89.3 |
3 |
|
FDM3C-4 |
94 |
105 |
400 |
450 |
136 |
135 |
1500 |
1800 |
0.8 |
90.4 |
91.3 |
3 |
|
FDM3DS-4 |
112.5 |
130 |
400 |
450 |
162 |
167 |
1500 |
1800 |
0.8 |
90.7 |
91.3 |
3 |
|
FDM3D-4 |
125 |
140 |
400 |
450 |
180 |
180 |
1500 |
1800 |
0.8 |
91.2 |
91.8 |
3 |
|
FDM3EM-4 |
150 |
170 |
400 |
450 |
217 |
218 |
1500 |
1800 |
0.8 |
92.2 |
92.8 |
3 |
|
FDM3G-4 |
187.5 |
220 |
400 |
450 |
271 |
282 |
1500 |
1800 |
0.8 |
92.7 |
93.2 |
3 |
|
FDM3H-4 |
225 |
270 |
400 |
450 |
325 |
346 |
1500 |
1800 |
0.8 |
92.5 |
93.0 |
3 |
|
FDM4MS-4 |
250 |
290 |
400 |
450 |
361 |
372 |
1500 |
1800 |
0.8 |
92.9 |
93.3 |
3 |
|
FDM4M-4 |
312.5 |
350 |
400 |
450 |
451 |
449 |
1500 |
1800 |
0.8 |
93.3 |
93.8 |
3 |
|
FDM4LP-4 |
375 |
430 |
400 |
450 |
541 |
552 |
1500 |
1800 |
0.8 |
93.7 |
94.1 |
3 |
|
FDM5S-4 |
400 |
460 |
400 |
450 |
577 |
590 |
1500 |
1800 |
0.8 |
94.0 |
94.3 |
3 |
|
FDM5MP-4 |
450 |
500 |
400 |
450 |
650 |
641 |
1500 |
1800 |
0.8 |
94.5 |
94.8 |
3 |
|
FDM5LS-4 |
500 |
570 |
400 |
450 |
722 |
731 |
1500 |
1800 |
0.8 |
94.8 |
95.0 |
3 |
|
FDM5L-4 |
575 |
640 |
400 |
450 |
830 |
821 |
1500 |
1800 |
0.8 |
94.7 |
95.0 |
3 |
|
FDM5LP-4 |
625 |
680 |
400 |
450 |
902 |
872 |
1500 |
1800 |
0.8 |
95.0 |
95.2 |
3 |
|
FDM6A-4 |
700 |
800 |
400 |
450 |
1010 |
1026 |
1500 |
1800 |
0.8 |
94.5 |
94.7 |
3 |
|
FDM6B-4 |
787.5 |
920 |
400 |
450 |
1137 |
1180 |
1500 |
1800 |
0.8 |
94.7 |
94.9 |
3 |
|
FDM6C-4 |
887.5 |
1000 |
400 |
450 |
1281 |
1283 |
1500 |
1800 |
0.8 |
95.0 |
95.2 |
3 |
|
FDM6D-4 |
1000 |
1100 |
400 |
450 |
1443 |
1411 |
1500 |
1800 |
0.8 |
95.4 |
95.5 |
3 |

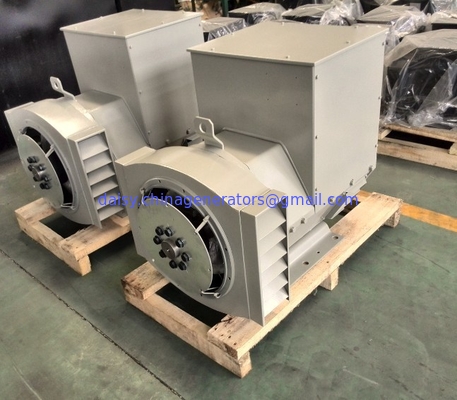

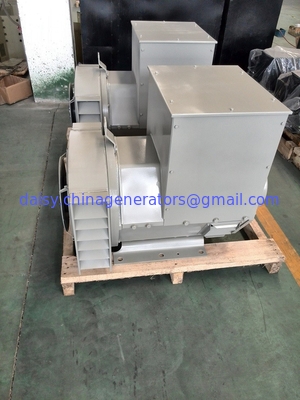

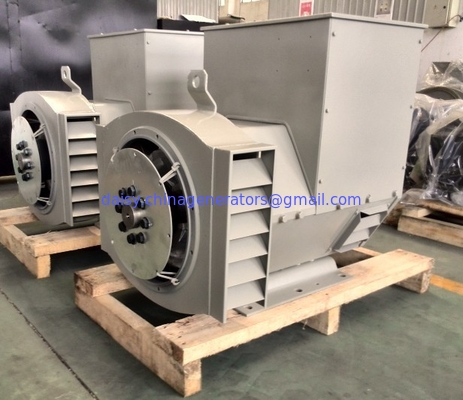

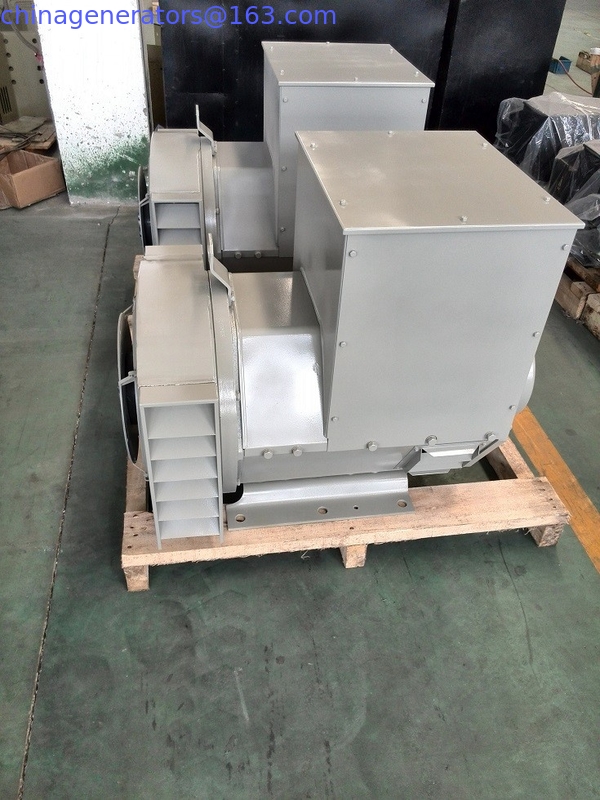

Product Show
Package Details
Warranty Period
- Within 24 months from alternator's delivery or 18 months after the date first used, whichever comes first.
- During the guarantee period, we will supply freely service of the easy damaged parts for the possible problems except for the incorrect operation.
- After expiration, you should pay for the spare parts cost for alternator maintenance.
Payment Terms
- 30% deposit(T/T),balance (70%) to be paid before shipment.
- 100% irrevocable L/C at sight.
Why Choose Us?
1) factory photos. Welcome to visit our factory!
- Over 12 years experience in generator field
- Directly manufacturer
2) Production Process
-
6 pole and 8 pole ac generator
New photos will come soon!
-
Marine generator
Main Partners
How to choose us?
1.Classification of generator:
(1) single phase or three phase;
(2) single bearing or double bearing;
(3) PMG is optional (except for FD1 series)
(4) Droop Kit and Anti-condensation heater are optional according to the operation environment.
(5) 2 pole/ 4 pole/ 6 pole/ 8 pole alternators are optional
2.How to choose AVR?
FD1/FD2 series SX460
FD3/FD4/FD5 series SX440
FD6 SX321 / PMG
FD7 SX341 / PMG
3.How to select generator?
-- working environment (less than 1000m above sea level & less than 40 ℃ ambient temperature)
-- different country with different frequency (60HZ for Korea, Taiwan, Philippines, Saudi Arabia, North America and South America countries)
-- For sea side operating environment, anti-condensation heater and droop CT
-- Insulation class H generator
-- 2/3 pitch
-- silicon steel, 100% copper wire, VPI system with Elantas Epoxy insulation painting
4. What is FD and FDH?
--FD means Faraday low voltage alternator
--FDH means Faraday high voltage alternator
--The model instruction is as follows:
