Specifications for 1000KW 6 pole 1000rpm alternator manufacturer
1. Directly Manufacturer
2. 100% Copper wire AC Alternator 1250KVA/1000KW
3. OEM Service
4. CE/ISO Approved
5. 30-50 days lead time
FARADAY 100% Copper Wire 6 Pole Three Phase AC Alternator 270KW-2200KW
Alternator Features:
- Brushless, Synchronous AC Alternator, Easy operation and simple maintenance
- IP23, Insulation Class H Alternator
- Usage: As a electric power source matching diesel engines for lighting purpose in Town, Countryside, Work sites, Mountain and Pasture lands
- Drip-proof type
- 3 phase 4 wire type, Star connection
- 50HZ, 380V, 1500RPM as standard, also 60HZ can be made as customers’ requirement
- Certificate: CE/ISO9001
Operating conditions
Under the following environment, The generator could be continuous and rated running:
Above sea level: Not exceed 1000m
Cooling air temperature: 258~313K(-15 ℃~ 40 ℃)
Relative air damping: not exceed 90%
Alternator Specification:
3-PH, 50HZ@1000RPM, 400/230V(Also can be made according to customers’ special requirements)
|
Alternator Model
|
FD7E
|
|
Power
|
1250kva / 1000kw
|
|
Exciter type
|
Brushless, Self excitation system
|
|
Power factor
|
0.8
|
|
Voltage adjust range
|
≥3%
|
|
Voltage regulation NL-FL
|
≤±0.3%
|
|
Insulation Grade
|
H
|
|
Protection Grade
|
IP23
|
FARADAY FD7 Series Alternator data for your reference:
|
Alternator Model |
50HZ 400V 1000RPM |
60HZ 480V 1200RPM |
|
Continuous rating KW |
Efficiency % |
Continuous rating KW |
Efficiency % |
|
FD6A-6 |
270 |
93 |
320 |
93.6 |
|
FD6B-6 |
320 |
93.9 |
400 |
94.4 |
|
FD6C-6 |
400 |
94.2 |
500 |
94.7 |
|
FD6D-6 |
500 |
94.7 |
600 |
95.2 |
|
FD7A-6 |
640 |
94.9 |
800 |
95.3 |
|
FD7B-6 |
720 |
95 |
900 |
95.4 |
|
FD7C-6 |
800 |
95.3 |
1000 |
95.7 |
|
FD7D-6 |
900 |
95 |
1100 |
95.4 |
|
FD7E-6 |
1000 |
95.5 |
1200 |
95.9 |
|
FD8A-6 |
1200 |
95.3 |
1500 |
95.7 |
|
FD8B-6 |
1320 |
95.6 |
1600 |
95.9 |
|
FD8C-6 |
1500 |
95.9 |
1800 |
96.3 |
|
FD9A-6 |
1650 |
95.7 |
2000 |
96.1 |
|
FD9B-6 |
2000 |
96.0 |
2400 |
96.3 |
|
FD9C-6 |
2200 |
96.3 |
2600 |
96.5 |

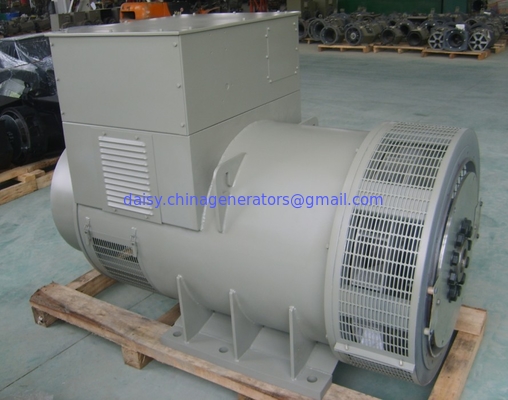

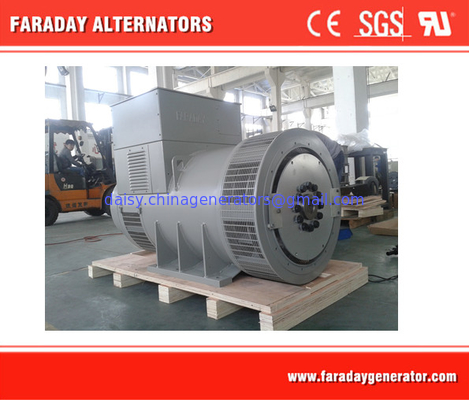

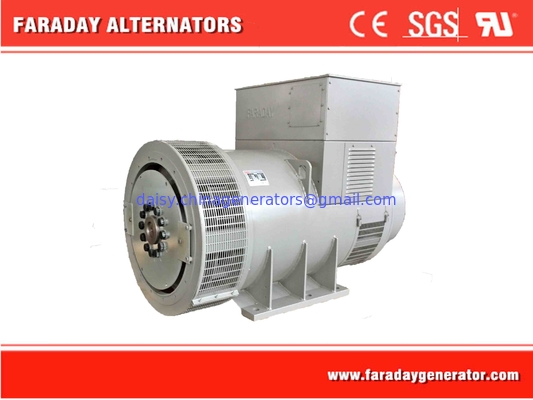

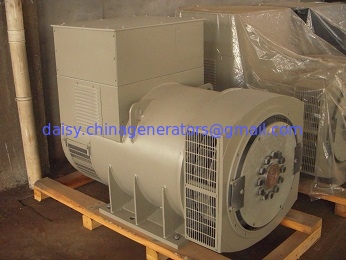

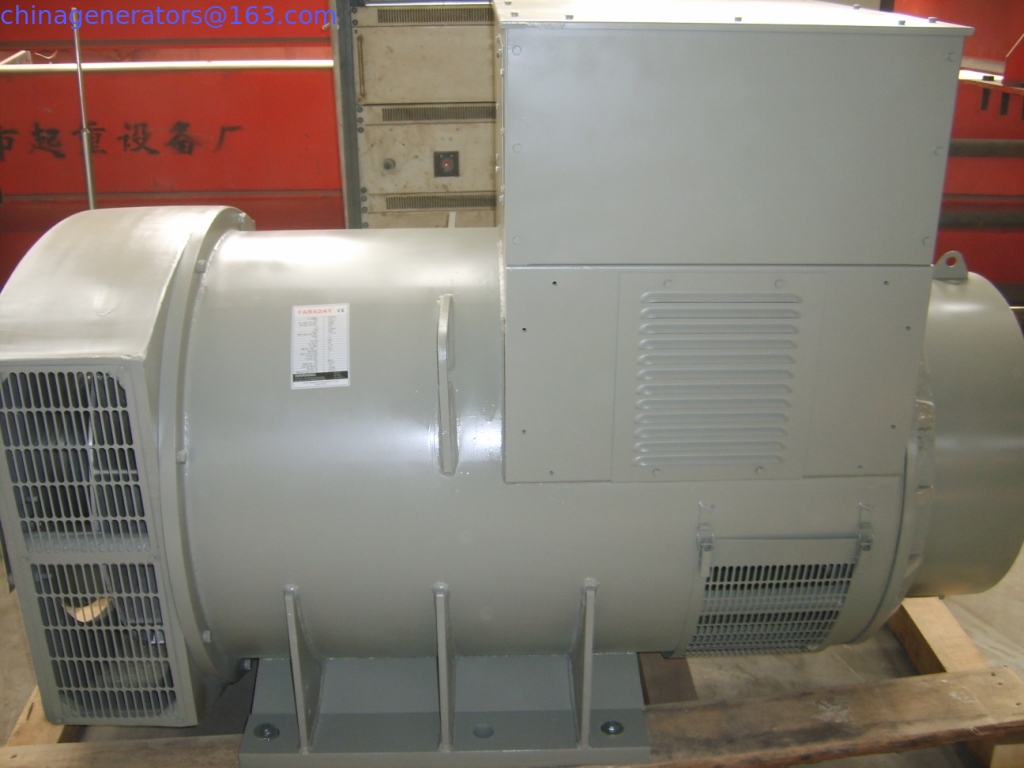

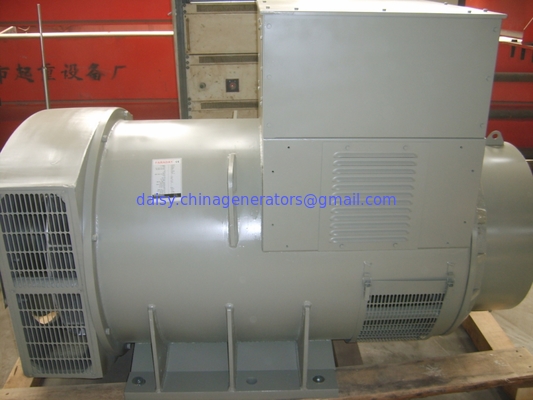

Product Show
Package Details
Warranty Period
- Within 24 months from alternator's delivery or 18 months after the date first used, whichever comes first.
- During the guarantee period, we will supply freely service of the easy damaged parts for the possible problems except for the incorrect operation.
- After expiration, you should pay for the spare parts cost for alternator maintenance.
Payment Terms
- 30% deposit(T/T),balance (70%) to be paid before shipment.
- 100% irrevocable L/C at sight.
Why Choose Us?
1) factory photos. Welcome to visit our factory!
- Over 12 years experience in generator field
- Directly manufacturer
2) Production Process
-
6 pole and 8 pole ac generator
New photos will come soon!
-
Marine generator
Main Partners
How to choose us?
1.Classification of generator:
(1) single phase or three phase;
(2) single bearing or double bearing;
(3) PMG is optional (except for FD1 series)
(4) Droop Kit and Anti-condensation heater are optional according to the operation environment.
(5) 2 pole/ 4 pole/ 6 pole/ 8 pole alternators are optional
2.How to choose AVR?
FD1/FD2 series SX460
FD3/FD4/FD5 series SX440
FD6 SX321 / PMG
FD7 SX341 / PMG
3.How to select generator?
-- working environment (less than 1000m above sea level & less than 40 ℃ ambient temperature)
-- different country with different frequency (60HZ for Korea, Taiwan, Philippines, Saudi Arabia, North America and South America countries)
-- For sea side operating environment, anti-condensation heater and droop CT
-- Insulation class H generator
-- 2/3 pitch
-- silicon steel, 100% copper wire, VPI system with Elantas Epoxy insulation painting
4. What is FD and FDH?
--FD means Faraday low voltage alternator
--FDH means Faraday high voltage alternator
--The model instruction is as follows:
